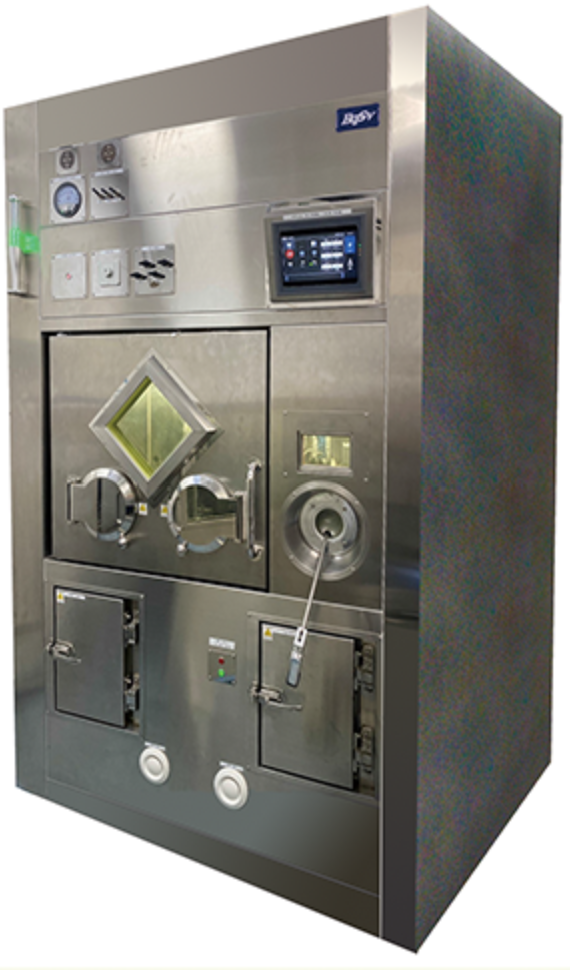

The production Hot Cell is equipped with two shielded glove ports, one tele-tong, and two lead glass viewing windows on the front of operation platform. It is available for two operators to handle the isotope simultaneously. It is not only for research purpose but also for GMP production.
- The working chamber is SUS 316 stainless steel with rounded corners to minimize dust accumulation. The external surface is SUS 304 stainless steel
- 60 mm thickness of lead shield for the front side and 50 mm thickness of lead shield for all the other sides. The front side is equipped with an equivalent shielding of lead glass viewing window, two shielded glove ports and one tele-tong
- Air inflatable rubber sealing technology ensures chamber air tightness
- The laminar flow dispensing chamber includes HEPA filtration that provides air quality to comply with Grade A (class 100 / ISO 5)
- The Touch Screen Control Panel with PLC system integrates all operating functions in one.
- A raw material in/out lead shielded drawer with ventilated air is built on the lower level of the operation side. There is also an interlocker function to avoid the cross contamination.
- A product delivery drawer with lead shielded, air ventilated and auto capping device is equipped on the lower level of the operation side. There is also an interlocker function to avoid the cross contamination
- A dose calibrator with 50 mm lead shield well is equipped below the counter top with control on the front of the hot cell (optional)
- A radiation detector to measure dose rate inside the chamber and interlock the door while the radiation level is over the threshold (optional)
Models:
- PDHC-75 (75/60 mm lead shielding) weight: 8200 kg
- PDHC-60 (60/50 mm lead shielding) weight: 6800 kg
Dimensions & Power:
- External size: W 150 x D 120 x H 240cm
- Internal size: W 120 x D 80 x H 70cm
- Power: 220V, 15A
