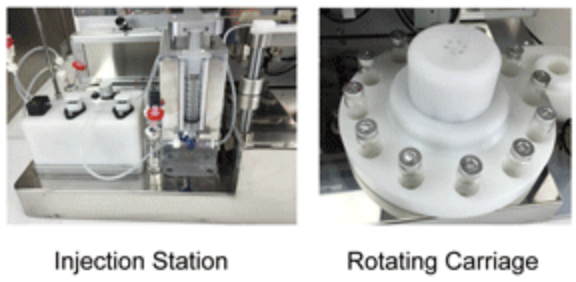

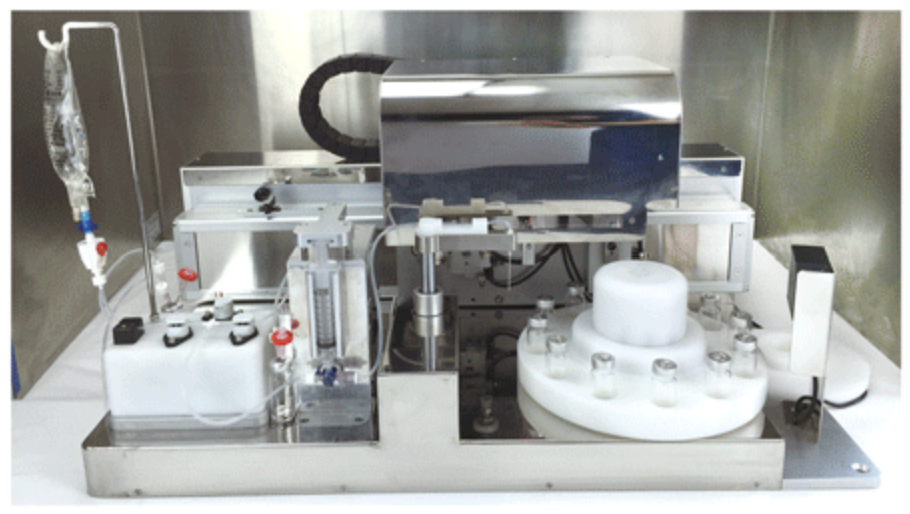

The automatic multiple vials dispenser is designed for the mass production of cyclotron facility for distribution to comply GMP requirement. It may produce up to 30 vials of radiopharmaceutical in a continuous process without interruption. From vial pickup, aluminium cap and rubber stopper removed, radiopharmaceutical filled-in, rubber stopper re-capped, dose measurement, aluminium cap sealed, bar code scaled, and to deliver product vial to transport container

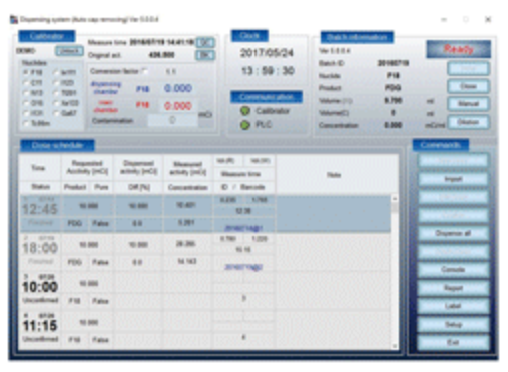

Software control and manage the process
- More than 12 isotopes in library. It performs the decay correction, activity calculation and volume dilution
- All the process is PC software control in fully automatic mode, also be available for semi-automatic mode as operator prefers
- Performs the volume calibration or activity calibration for daily production or QC test
- Data Management function including the batch number, product information and patient information
Model: MDV-12
- Dispensing time: Average 70 second per vial (15 minutes for 12 vials)
- Dimensions: W 74 x D 51 cm x H 35 cm
- Weight: 40kg
- Power: 110 voltage, 1 phase, 10 Amp
- Pneumatic pressure: 6 bar
